| PART NO. | Picture | Product Status | VDSS (V) | RDS (on) Typ. | RDS (on) Max. | ID (A) @25°C | ID (A) @100°C | Channel | VGS (V) | VTH (V) Min | VTH (V) Max | Package | CAD模型 | 電路圖 |
|
|
DAM277N006G1
 |
 |
Active | 60 | 0.9 mΩ | 1.1 mΩ | 277 | 175 | N | ± 20 | 3 | 4 | PPAK5x6 | ||
|
|
DAM272N010P1
|
 |

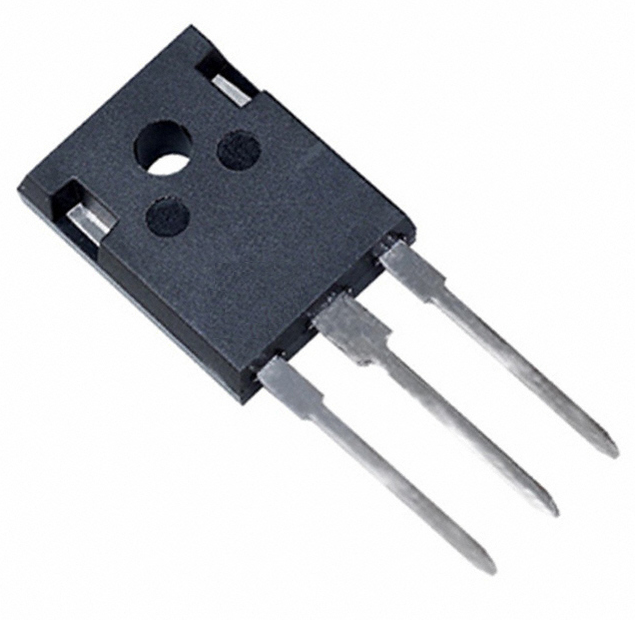

Active | 100 | 1.8 mΩ | 2.2 mΩ | 272 | 177 | N | ± 20 | 2 | 4 | TO-247 | ||
|
|
DAM050N030U1
|
 |

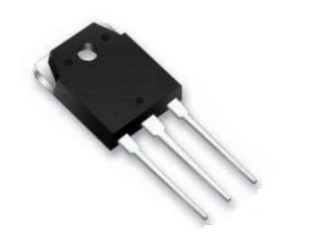

Active | 300 | 68 mΩ | 88 mΩ | 50 | 31 | N | ± 20 | 2 | 4 | TO-3P | ||
|
|
DAM009N090U1
|
 |
Active | 900 | null | 1.4 Ω | 9 | 5.8 | N | ± 30 | 2 | 4 | TO-3P | ||
|
|
DAM009N090P1
|
 |
Active | 900 | null | 1.4 Ω | 9 | 5.8 | N | ± 30 | 2 | 4 | TO-247 | ||
|
|
DAM005N120F1
|
 |
Active | 1200 | 2.6 Ω | 3.2 Ω | 5 | null | N | ±30 | 3 | 5 | TO-220F | ||
|
|
DAM008N120F1
|
 |
Active | 1200 | 1.5 Ω | 1.85 Ω | 8 | null | N | ±30 | 3 | 5 | TO-220F | ||
|
|
DAM009N150P1
|
 |
Active | 1500 | 2.8 Ω | 4.0 Ω | 9 | null | N | ±30 | 2.5 | 4.5 | TO-247 | ||
|
|
DAM006N150P1
|
 |
Active | 1500 | 2.5 Ω | 3.5 Ω | 6 | 4.4 | N | ±30 | 2.5 | 4.5 | TO-247 | ||
|
|
DAM004N150P1
|
 |
Active | 1500 | 3.8 Ω | 5.0 Ω | 4 | 2.6 | N | ±30 | 2.5 | 4.5 | TO-247 |
