PART NO. | Picture | Product Status | BVDSS (V) | RDS (on) (mΩ) Typ | RDS (on) (mΩ) Max | ID (A) @25°C | ID (A) @110°C | VGS (V) | VTH (V) Typ | Configuration | Package | CAD模型 | 電路圖 |
|
|

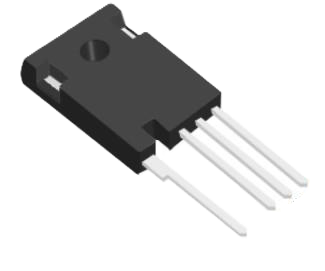

 DAC015N065Z2
|
 |
Active | 650 | 15 | 20 | 120 | 95 | -8 to +19 | 2.30 | Single | TO-247-4L | ||
|
|
DAC020N065Z1
|
 |
Active | 650 | 20 | 26 | 107 | 72 | -5 to +20 | 2.60 | Single | TO-247-4L | ||
|
|
DAC014N120Z5
|
 |
Active | 1200 | 14 | 18 | 135 | 95 | -4 to +15 | 2.5 | Single | TO-247-4L | ||
|
|
DAC021N120Z4
|
 |
Active | 1200 | 20.5 | 29.4 | 100 | 71 | -5 to +18 | 3.0 | Single | TO-247-4L | ||
|
|
DAC030N120Z1
|
 |
Active | 1200 | 30 | 40 | 78 | 53 | -5 to +20 | 2.70 | Single | TO-247-4L | ||
|
|
DAC040N120Z1
|
 |
Active | 1200 | 40 | 52 | 62 | 42 | -5 to +20 | 2.70 | Single | TO-247-4L | ||
|
|
DAC040N120Z5
|
 |
Active | 1200 | 40 | 53 | 54 | 38 | -4 to +15 | 2.8 | Single | TO-247-4L | ||
|
|

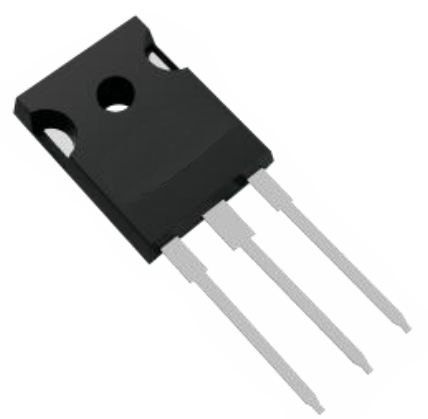

DAC060N120P1
|
 |
Active | 1200 | 60 | 80 | 44.5 | 30.6 | -5 to +20 | 2.85 | Single | TO-247-3L |
